JumpServer介绍

简介

JumpServer是一款开源的使用Python/Django为主进行开发的堡垒机，它是符合4A规范的运维安全审计系统。它采纳分布式架构，支持多机房跨区域部署，支持横向扩展，无资产数量及并发限制。

特点：开源、分布式、无插件、多云支持、云端存储、多租户、多应用支持。

运维安全审计的4A规范，也就是堡垒机需要具备的四个核心能力：身份鉴别、授权控制、账号管理、安全审计。

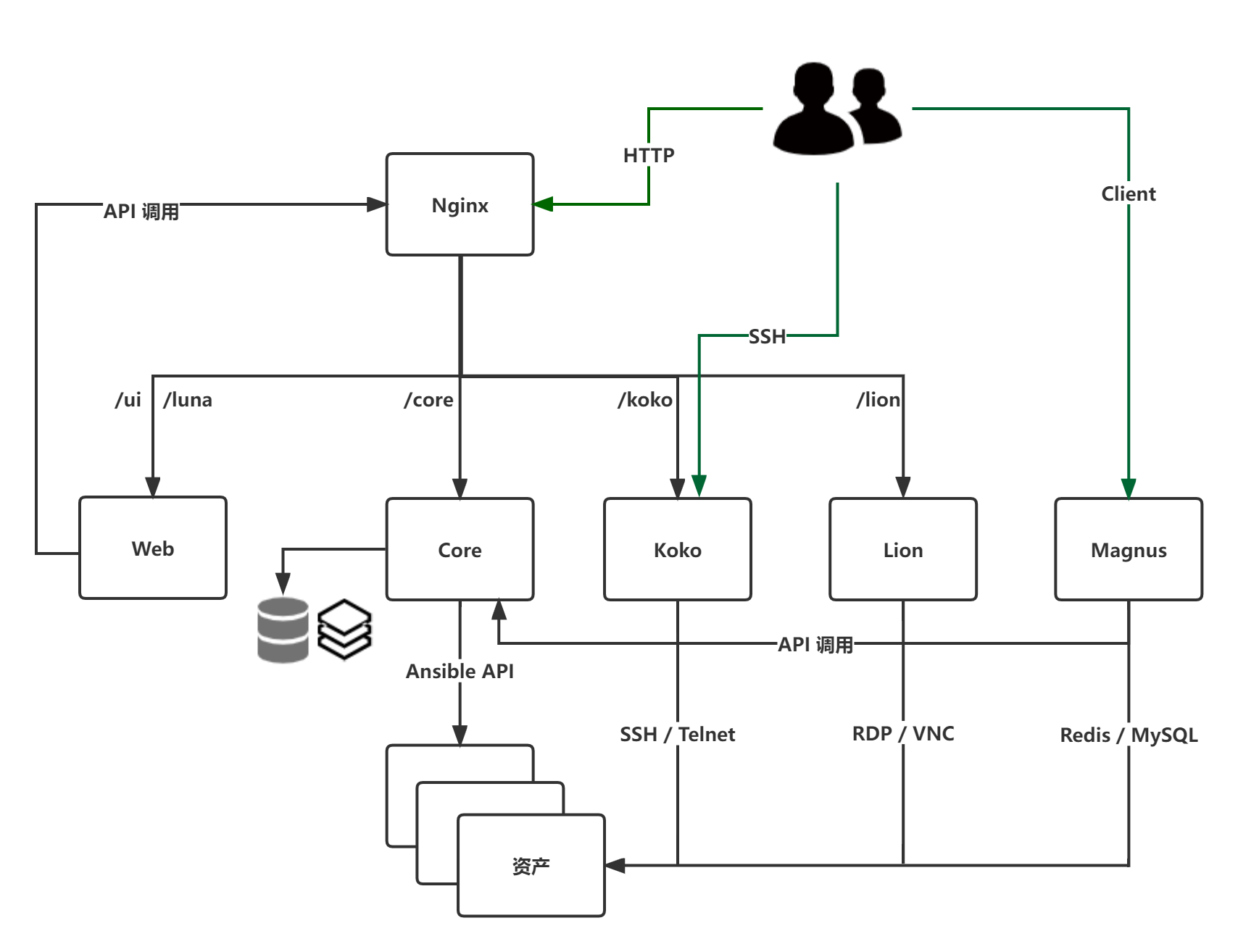

组件

LINA：前端模块，负责页面展示。

Luna：现在是Web Terminal前端，但计划和LINA项目合并。

CORE：JumpServer的核心组件，也就是管理后台，使用Django Class Based View风格开发。

CoCo/Koko：实现SSH Server和Web Terminal Server的组件，提供SSH和WebSocket接口。

Guacamole：Apache跳板机项目，用于提供RDP功能实现Windows连接等。

JumpServer安装部署

环境准备

存储空间评估参考：

• 100台Linux虚拟机资产，正常使用的情况下，200G可以存储5-6个月的录像，Windows录像会需要更多。

JumpServer服务需要打开的端口：

• SSH端口，默认：22。

• JumpServer的Web服务端口，默认：80、8080。

• JumpServer的终端连接端口，默认：2222。

  • 用于第三方工具连接资产主机时使用，如：Xshell、Putty等

安装部署

脚本一键部署

# 下载并执行部署脚本
# 默认会安装到/opt/jumpserver-installer-v2.22.1 目录
# 安装完成后配置文件/opt/jumpserver/config/config.txt
curl -sSL https://github.com/jumpserver/jumpserver/releases/download/v2.22.1/quick_start.sh | bash

# 启动JumpServer服务
bash /opt/jumpserver-installer-v2.22.1/jmsctl.sh start

手动部署

# 下载并解压安装包
wget https://github.com/jumpserver/installer/releases/download/v2.22.1/jumpserver-installer-v2.22.1.tar.gz
tar -zxf jumpserver-installer-v2.22.1.tar.gz
cd jumpserver-installer-v2.22.1

# 修改配置文件模板
vim config-example.txt

# 安装程序,安装完成后配置文件/opt/jumpserver/config/config.txt
./jmsctl.sh install

# 启动程序
./jmsctl.sh start

编译部署

环境要求

• Python >= 3.8

• MySQL >= 5.7 || MariaDB >= 10.2

• Redis >= 6

安装方法

• https://docs.jumpserver.org/zh/master/dev/build/
• 该安装方式解耦合性高，需要分布式部署JumpServer服务时可以使用。

K8S部署

参考配置文件

apiVersion: apps/v1
kind: Deployment
metadata:
  name: jms-redis-deploy
  namespace: default
spec:
  selector:
    matchLabels:
      app: jms-redis
  replicas: 1
  template:
    metadata:
      labels:
        app: jms-redis
    spec:
      containers:
      - name: jms-redis
        image: jumpserver/redis:6-alpine
        imagePullPolicy: IfNotPresent
        args:
          - redis-server
          - --requirepass
          - 18B5m3XSgaHWD90Z
        volumeMounts:
          - name: redis-data
            mountPath: /data
      volumes:
        - name: redis-data
          hostPath:
            path: /data/jumpserver/redis/data
            type: DirectoryOrCreate
---
apiVersion: v1
kind: Service
metadata:
  name: jms-redis-svc
  namespace: default
spec:
  selector:
    app: jms-redis
  type: ClusterIP
  ports:
    - name: redis
      protocol: TCP
      port: 6379
      targetPort: 6379
# Core =====================================================
apiVersion: apps/v1
kind: Deployment
metadata:
  name: jms-core-deploy
  namespace: default
  labels:
    app: jms-core
spec:
  selector:
    matchLabels:
      app: jms-core
  replicas: 1
  template:
    metadata:
      labels:
        app: jms-core
    spec:
      restartPolicy: Always
      containers:
        - name: core
          image: jumpserver/core:v2.22.2
          imagePullPolicy: IfNotPresent
          tty: true
          args: ["start", "web"]
          env:
            # Core配置
            - name: SECRET_KEY
              value: "BxFGM9Ly1eyA3qoTZYAFDUDkEcGyqk79cHvCOMbMaVG3FOP7"
            - name: BOOTSTRAP_TOKEN
              value: "OKnEyCOWa7k14AwFwzrjsdxh"
            - name: LOG_LEVEL
              value: "ERROR"
            # 数据库配置
            - name: DB_HOST
              value: "10.102.140.18"
            - name: DB_PORT
              value: "3306"
            - name: DB_USER
              value: "root"
            - name: DB_PASSWORD
              value: "qwe123123"
            - name: DB_NAME
              value: "jumpserver"
            # Redis配置
            - name: REDIS_HOST
              value: "jms-redis-svc.default.svc.cluster.local"
            - name: REDIS_PORT
              value: "6379"
            - name: REDIS_PASSWORD
              value: 18B5m3XSgaHWD90Z
          ports:
            - name: core-http
              containerPort: 8080
              protocol: TCP
            - name: core-ws
              containerPort: 8070
              protocol: TCP
          livenessProbe:
            httpGet:
              path: /api/health/
              port: core-http
              scheme: HTTP
            failureThreshold: 3
            initialDelaySeconds: 20
            periodSeconds: 10
            timeoutSeconds: 10
          readinessProbe:
            httpGet:
              path: /api/health/
              port: core-http
              scheme: HTTP
            failureThreshold: 3
            initialDelaySeconds: 20
            periodSeconds: 10
            timeoutSeconds: 10
          lifecycle:
            postStart:
              exec:
                # 修改数据库过期时间的默认300秒为15天
                command: ["/bin/bash", "-c", 'sed -ri "s/(def create_token.*?) ttl=5 \* 60/\1 ttl=15 * 86400/" /opt/jumpserver/apps/authentication/api/connection_token.py']
          volumeMounts:
            - name: core-data
              mountPath: /opt/jumpserver/data
            - name: core-logs
              mountPath: /opt/jumpserver/logs
      volumes:
        - name: core-data
          hostPath:
            path: /data/jumpserver/core/data
            type: DirectoryOrCreate
        - name: core-logs
---
# Celery =====================================================
apiVersion: apps/v1
kind: Deployment
metadata:
  name: jms-celery-deploy
  namespace: default
  labels:
    app: jms-celery
spec:
  selector:
    matchLabels:
      app: jms-celery
  replicas: 1
  template:
    metadata:
      labels:
        app: jms-celery
    spec:
      restartPolicy: Always
      containers:
        - name: celery
          image: jumpserver/core:v2.22.2
          imagePullPolicy: IfNotPresent
          tty: true
          args: ["start", "task"]
          env:
            # Core配置
            - name: SECRET_KEY
              value: "BxFGM9Ly1eyA3qoTZYAFDUDkEcGyqk79cHvCOMbMaVG3FOP7"
            - name: BOOTSTRAP_TOKEN
              value: "OKnEyCOWa7k14AwFwzrjsdxh"
            - name: LOG_LEVEL
              value: "ERROR"
            # 数据库配置
            - name: DB_HOST
              value: "10.102.140.18"
            - name: DB_PORT
              value: "3306"
            - name: DB_USER
              value: "root"
            - name: DB_PASSWORD
              value: "qwe123123"
            - name: DB_NAME
              value: "jumpserver"
            # Redis配置
            - name: REDIS_HOST
              value: "jms-redis-svc.default.svc.cluster.local"
            - name: REDIS_PORT
              value: "6379"
            - name: REDIS_PASSWORD
              value: 18B5m3XSgaHWD90Z
          livenessProbe:
            exec:
              command: ["/bin/bash", "/opt/jumpserver/utils/check_celery.sh"]
            failureThreshold: 3
            initialDelaySeconds: 20
            periodSeconds: 10
            timeoutSeconds: 10
          readinessProbe:
            exec:
              command: ["/bin/bash", "/opt/jumpserver/utils/check_celery.sh"]
            failureThreshold: 3
            initialDelaySeconds: 20
            periodSeconds: 10
            timeoutSeconds: 10
          lifecycle:
            postStart:
              exec:
                # 修改数据库过期时间的默认300秒为15天
                command: ["/bin/bash", "-c", 'sed -ri "s/(def create_token.*?) ttl=5 \* 60/\1 ttl=15 * 86400/" /opt/jumpserver/apps/authentication/api/connection_token.py']
          volumeMounts:
            - name: core-data
              mountPath: /opt/jumpserver/data
            - name: core-logs
              mountPath: /opt/jumpserver/logs
      volumes:
        - name: core-data
          hostPath:
            path: /data/jumpserver/core/data
            type: DirectoryOrCreate
        - name: core-logs
          hostPath:
            path: /data/jumpserver/core/logs
            type: DirectoryOrCreate
---
# Koko =====================================================
apiVersion: apps/v1
kind: Deployment
metadata:
  name: jms-koko-deploy
  namespace: default
  labels:
    app: jms-koko
spec:
  selector:
    matchLabels:
      app: jms-koko
  replicas: 1
  template:
    metadata:
      labels:
        app: jms-koko
    spec:
      restartPolicy: Always
      containers:
        - name: koko
          image: jumpserver/koko:v2.22.2
          imagePullPolicy: IfNotPresent
          tty: true
          env:
            - name: CORE_HOST
              value: "http://jms-core-svc.default.svc.cluster.local:8080"
            - name: BOOTSTRAP_TOKEN
              value: "OKnEyCOWa7k14AwFwzrjsdxh"
            - name: LOG_LEVEL
              value: "ERROR"
          ports:
            - name: koko-http
              containerPort: 5000
              protocol: TCP
            - name: koko-ssh
              containerPort: 2222
              protocol: TCP
          livenessProbe:
            httpGet:
              path: /koko/health/
              port: koko-http
              scheme: HTTP
            failureThreshold: 3
            initialDelaySeconds: 20
            periodSeconds: 10
            timeoutSeconds: 10
          readinessProbe:
            httpGet:
              path: /koko/health/
              port: koko-http
              scheme: HTTP
            failureThreshold: 3
            initialDelaySeconds: 20
            periodSeconds: 10
            timeoutSeconds: 10
          volumeMounts:
            - name: koko-data
              mountPath: /opt/koko/data
      volumes:
        - name: koko-data
          hostPath:
            path: /data/jumpserver/koko/data
            type: DirectoryOrCreate
---
# Lion =====================================================
apiVersion: apps/v1
kind: Deployment
metadata:
  name: jms-lion-deploy
  namespace: default
  labels:
    app: jms-lion
spec:
  selector:
    matchLabels:
      app: jms-lion
  replicas: 1
  template:
    metadata:
      labels:
        app: jms-lion
    spec:
      restartPolicy: Always
      containers:
        - name: lion
          image: jumpserver/lion:v2.22.2
          imagePullPolicy: IfNotPresent
          tty: true
          env:
            - name: CORE_HOST
              value: "http://jms-core-svc.default.svc.cluster.local:8080"
            - name: BOOTSTRAP_TOKEN
              value: "OKnEyCOWa7k14AwFwzrjsdxh"
            - name: LOG_LEVEL
              value: "ERROR"
            - name: JUMPSERVER_ENABLE_FONT_SMOOTHING
              value: "true"
          ports:
            - name: lion-http
              containerPort: 8081
              protocol: TCP
          livenessProbe:
            httpGet:
              path: /lion/health/
              port: lion-http
              scheme: HTTP
            failureThreshold: 3
            initialDelaySeconds: 20
            periodSeconds: 10
            timeoutSeconds: 10
          readinessProbe:
            httpGet:
              path: /lion/health/
              port: lion-http
              scheme: HTTP
            failureThreshold: 3
            initialDelaySeconds: 20
            periodSeconds: 10
            timeoutSeconds: 10
          volumeMounts:
            - name: lion-data
              mountPath: /opt/lion/data
      volumes:
        - name: lion-data
          hostPath:
            path: /data/jumpserver/lion/data
            type: DirectoryOrCreate
---
# Magnus =====================================================
apiVersion: apps/v1
kind: Deployment
metadata:
  name: jms-magnus-deploy
  namespace: default
  labels:
    app: jms-magnus
spec:
  selector:
    matchLabels:
      app: jms-magnus
  replicas: 1
  template:
    metadata:
      labels:
        app: jms-magnus
    spec:
      restartPolicy: Always
      containers:
        - name: magnus
          image: jumpserver/magnus:v2.22.2
          imagePullPolicy: IfNotPresent
          tty: true
          env:
            - name: CORE_HOST
              value: "http://jms-core-svc.default.svc.cluster.local:8080"
            - name: BOOTSTRAP_TOKEN
              value: "OKnEyCOWa7k14AwFwzrjsdxh"
            - name: LOG_LEVEL
              value: "ERROR"
          ports:
            - name: magnus-mysql
              containerPort: 33060
              protocol: TCP
            - name: magnus-mariadb
              containerPort: 33061
              protocol: TCP
            - name: magnus-postgre
              containerPort: 54320
              protocol: TCP
          livenessProbe:
            tcpSocket:
              port: magnus-mysql
            failureThreshold: 3
            initialDelaySeconds: 20
            periodSeconds: 10
            timeoutSeconds: 10
          readinessProbe:
            tcpSocket:
              port: magnus-mysql
            failureThreshold: 3
            initialDelaySeconds: 20
            periodSeconds: 10
            timeoutSeconds: 10
          volumeMounts:
            - name: magnus-data
              mountPath: /opt/magnus/data
      volumes:
        - name: magnus-data
          hostPath:
            path: /data/jumpserver/magnus/data
            type: DirectoryOrCreate
---
# Web(Nginx) =====================================================
apiVersion: apps/v1
kind: Deployment
metadata:
  name: jms-web-deploy
  namespace: default
  labels:
    app: jms-web
spec:
  selector:
    matchLabels:
      app: jms-web
  replicas: 1
  template:
    metadata:
      labels:
        app: jms-web
    spec:
      restartPolicy: Always
      containers:
        - name: web
          image: jumpserver/web:v2.22.2
          imagePullPolicy: IfNotPresent
          tty: true
          env:
            - name: CORE_HOST
              value: "http://jms-core-svc.default.svc.cluster.local:8080"
            - name: BOOTSTRAP_TOKEN
              value: "OKnEyCOWa7k14AwFwzrjsdxh"
            - name: LOG_LEVEL
              value: "ERROR"
            - name: CLIENT_MAX_BODY_SIZE
              value: 4096m
          ports:
            - name: web-http
              containerPort: 80
              protocol: TCP
          livenessProbe:
            httpGet:
              path: /api/health/
              port: web-http
              scheme: HTTP
            failureThreshold: 3
            initialDelaySeconds: 20
            periodSeconds: 10
            timeoutSeconds: 10
          readinessProbe:
            httpGet:
              path: /api/health/
              port: web-http
              scheme: HTTP
            failureThreshold: 3
            initialDelaySeconds: 20
            periodSeconds: 10
            timeoutSeconds: 10
          volumeMounts:
            - name: web-conf
              mountPath: /etc/nginx/sites-enabled/jumpserver.conf
            - name: web-data
              mountPath: /opt/jumpserver/data
            - name: web-log
              mountPath: /var/log/nginx
      volumes:
        - name: web-conf
          hostPath:
            path: /data/jumpserver/nginx/jumpserver.conf
            type: FileOrCreate
        - name: web-log
          hostPath:
            path: /data/jumpserver/nginx/log
            type: DirectoryOrCreate
        - name: web-data
          hostPath:
            path: /data/jumpserver/core/data
            type: DirectoryOrCreate
---
apiVersion: v1
kind: Service
metadata:
  name: jms-core-svc
  namespace: default
spec:
  selector:
    app: jms-core
  type: ClusterIP
  ports:
    - name: core-http
      protocol: TCP
      port: 8080
      targetPort: 8080
    - name: core-ws
      protocol: TCP
      port: 8070
      targetPort: 8070
---
apiVersion: v1
kind: Service
metadata:
  name: jms-web-svc
  namespace: default
spec:
  selector:
    app: jms-web
  type: NodePort
  ports:
    - name: web-http
      protocol: TCP
      port: 80
      targetPort: 80
      nodePort: 32080
---
apiVersion: v1
kind: Service
metadata:
  name: jms-magnus-svc
  namespace: default
spec:
  selector:
    app: jms-magnus
  type: NodePort
  ports:
    - name: magnus-mysql
      protocol: TCP
      port: 33060
      targetPort: 33060
      nodePort: 32221
    - name: magnus-mariadb
      protocol: TCP
      port: 33061
      targetPort: 33061
      nodePort: 32222
    - name: magnus-postgre
      protocol: TCP
      port: 54320
      targetPort: 54320
      nodePort: 32223

JumpServer身份认证

用户

可用于登录JumpServer的Web管理后台、和JumpServer的SSH终端。

用户组

用户组即给用户分组，在用户多时，有用户组可以方便的进行资产授权管理

当某个资产对一个用户组授权后，这个用户组下面的所有用户就都可以使用这个资产，资产授权可以直接授权给用户、也可以授权给用户组。

身份认证安全设置

系统设置 -> 安全设置

• 连接最大空闲时间。

• 密码过期时间。

• 登录限制。

  • 限制登录失败次数。
  • IP 登录限制。
  • 禁止登录时间间隔。

MFA - 多因子认证

配置开启MFA后，登录需要通过身份验证APP获取动态码才能登录。

默认是全局关闭，可以全局开启，或者局部给某些用户配置。

账号管理

资产管理 -> 系统用户

普通用户

• 用于用户连接、使用资产主机时使用的用户。

• 认证方式

  • 托管密码，登录该用户时会自动使用托管的密码。

  • 手动输入，登录该用户时需要手动输入密码。

• 自动推送

  • 如果选择了自动推送，JumpServer会自动推送该用户到资产主机中。

    推送就是推送配置的用户账号密码到资产中，如果用户不存在则创建，如果密码不一致则改密。

    也可以手动点击推送、或者手动创建用户。

特权用户

• root或者有NOPASSWD: ALL sudo权限的用户，用于JumpServer服务管理资产主机时使用。

• 如：JumpServer获取主机信息、自动推送普通用户、执行后台任务等情况。

资产管理

资产管理 -> 资产列表 -> 左侧资产树

资产树作用

• 多维度管理，可以根据管理需要建立不同的资产树节点，来实现资产的不同管理目的。

• 灵活分配，资产可以分组与多个不同的资产节点，保证了资产管理的灵活性。

• 交叉授权，可以对资产节点进行授权，节点下的资产会自动继承授权规则。

• 无限延伸，资产树可以无限级建立，以保证满足管理需求。

资产树注意事项

• 资产树节点不能重名，右击可以添加、删除、重命名节点，以及对资产进行相关操作。
• JumpServer堡垒机可以对资产进行批量删除、批量更新、批量节点移除、批量禁用、批量激活等操作，批量更新需要在提交后填写修改信息。
• 删除节点的前提是该节点下没有资产。
